Engineered to Go Further

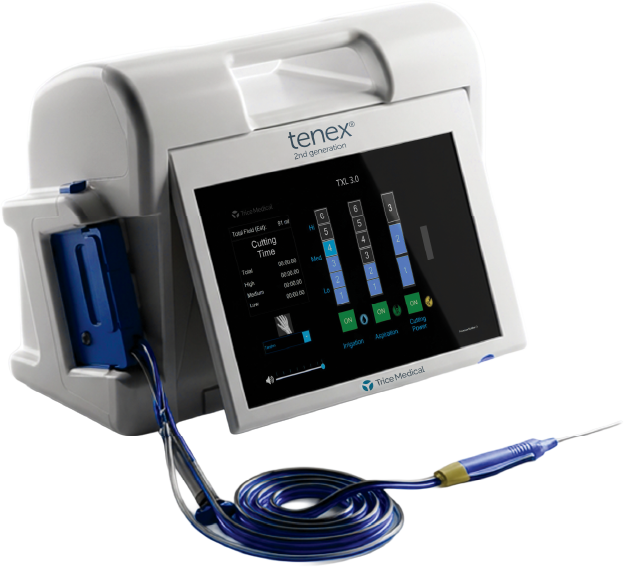

The Tenex 2nd Generation System empowers physicians to treat chronic tendinopathy and soft and hard tissue pathology with precision, efficiency, and a minimally invasive approach. Now, the 2nd Generation Console builds upon that trusted performance with enhanced functionality, expanded reach, and refined system intelligence—designed to help clinicians access deeper anatomies and optimize procedural workflow.

The 2nd Generation Console advances system performance and anatomical access through longer MicroTip options, enabling physicians to confidently treat deeper and more complex pathologies. An intuitive interface and refined controls streamline workflow while maintaining the precision and minimally invasive approach that define the Tenex platform. Each enhancement is purposefully engineered to support procedural efficiency, consistency, and clinical confidence from start to finish.

Tenex 2nd Generation Features

  • Streamlined, Lightweight Console for Enhanced Portability Single-Step
  • Single-Step, Easy-Loading MicroTip Cassette
  • Optimized for Procedural Efficiency
  • Integrated Safety Enhancements, Refined Setting Controls, and Comprehensive Case Tracking

The Right Tool Every Time

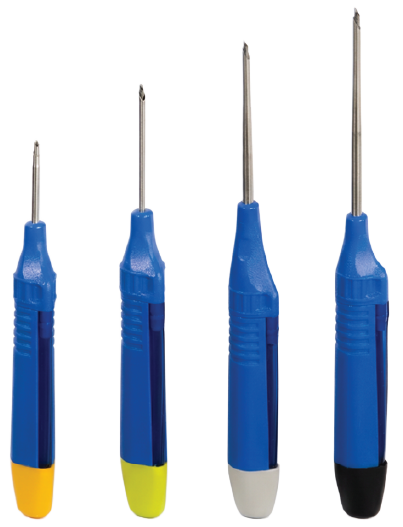

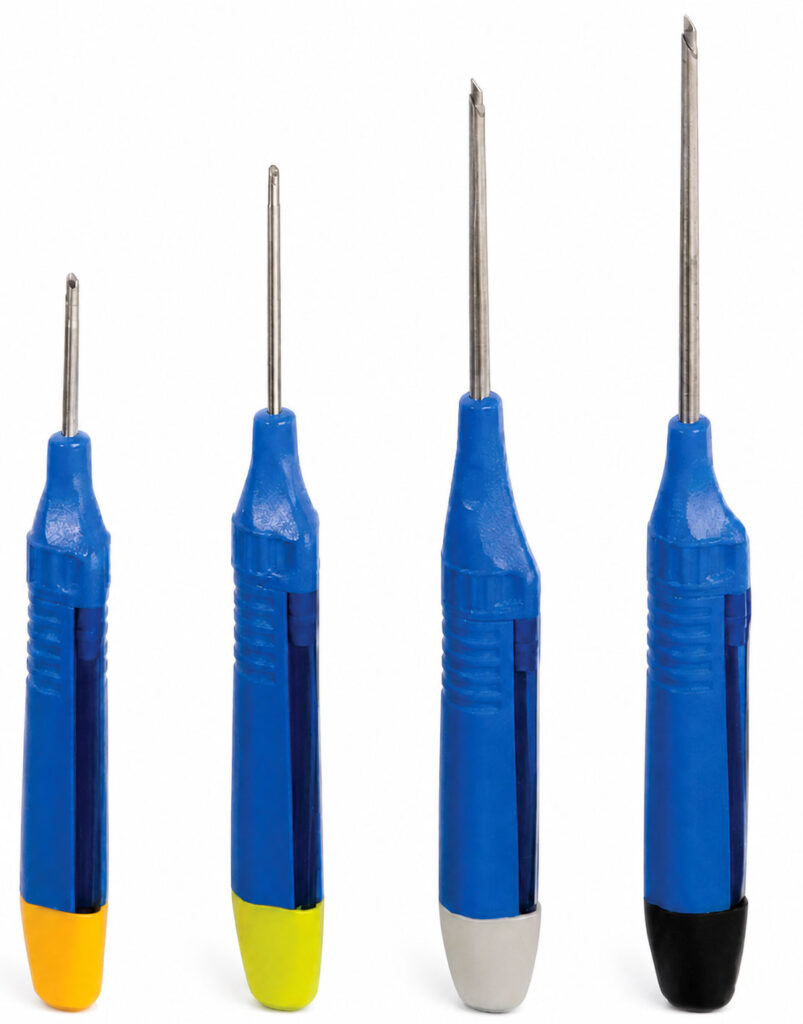

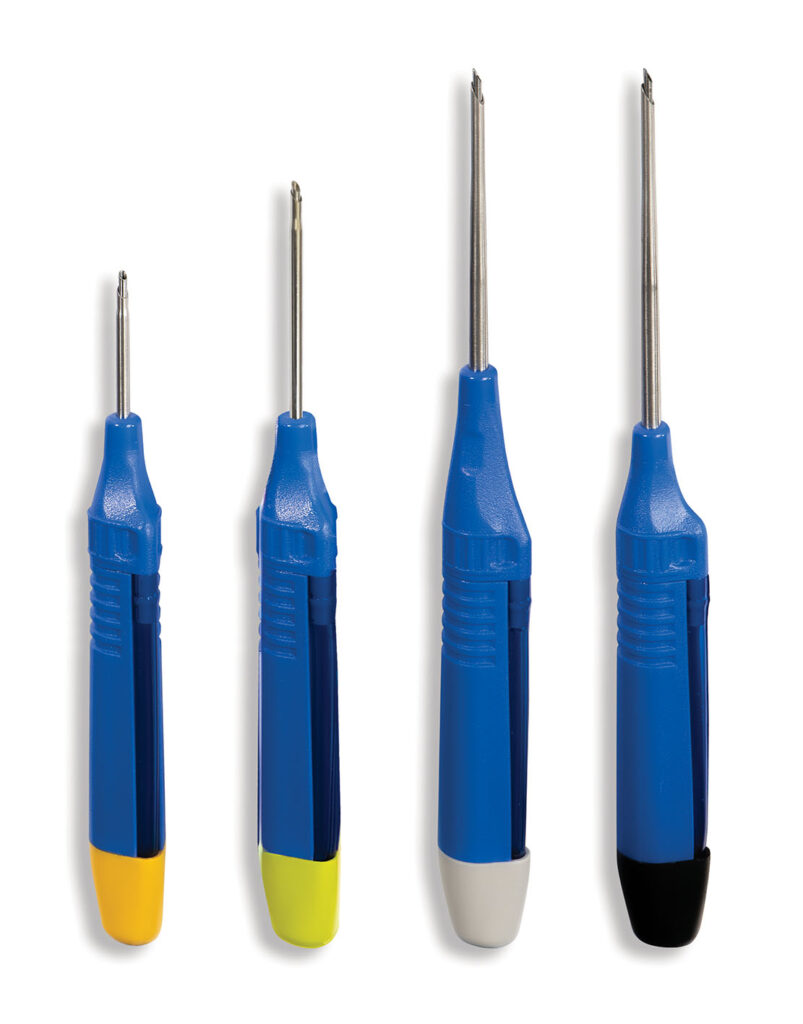

With four advanced MicroTip configurations, the Tenex 2nd Generation System empowers clinicians with expanded treatment flexibility and enhanced reach. Each option is thoughtfully engineered to support precise, minimally invasive removal of diseased hard and soft tissue across a broad range of anatomies.
MicroTip - Specifications & Characteristics Tip Gauge (Approximate Inner Lumen OD) Min Sheath Gauge (Approximate Outer Lumen Tip OD) Max Sheath Gauge (Approximate Outer Lumen Tip OD) Tissue Indication
TXS+ 1.3in / 32mm 15 (1.8mm) 12.5 (2.5mm) 11 (3.0mm) Hard
Soft
DFU
TXS 2.0in / 16mm 17 (1.5mm) 13 (2.4mm) 13 (2.4mm) Soft
TXL+ 2.5in / 63mm 15 (1.8mm) 12 (2.7mm) 8 (4.2mm) Hard
Soft
TXL 2.0in / 46mm 15 (1.8mm) 12 (2.7mm) 8 (4.2mm) Soft

Expanding Anatomical Access

The addition of longer MicroTips expands treatment reach, enabling physicians to address pathology in deeper, harder-to-access areas.

Animation showing intra-procedural view of Tenex 2nd Generation MicroTip in the hip.

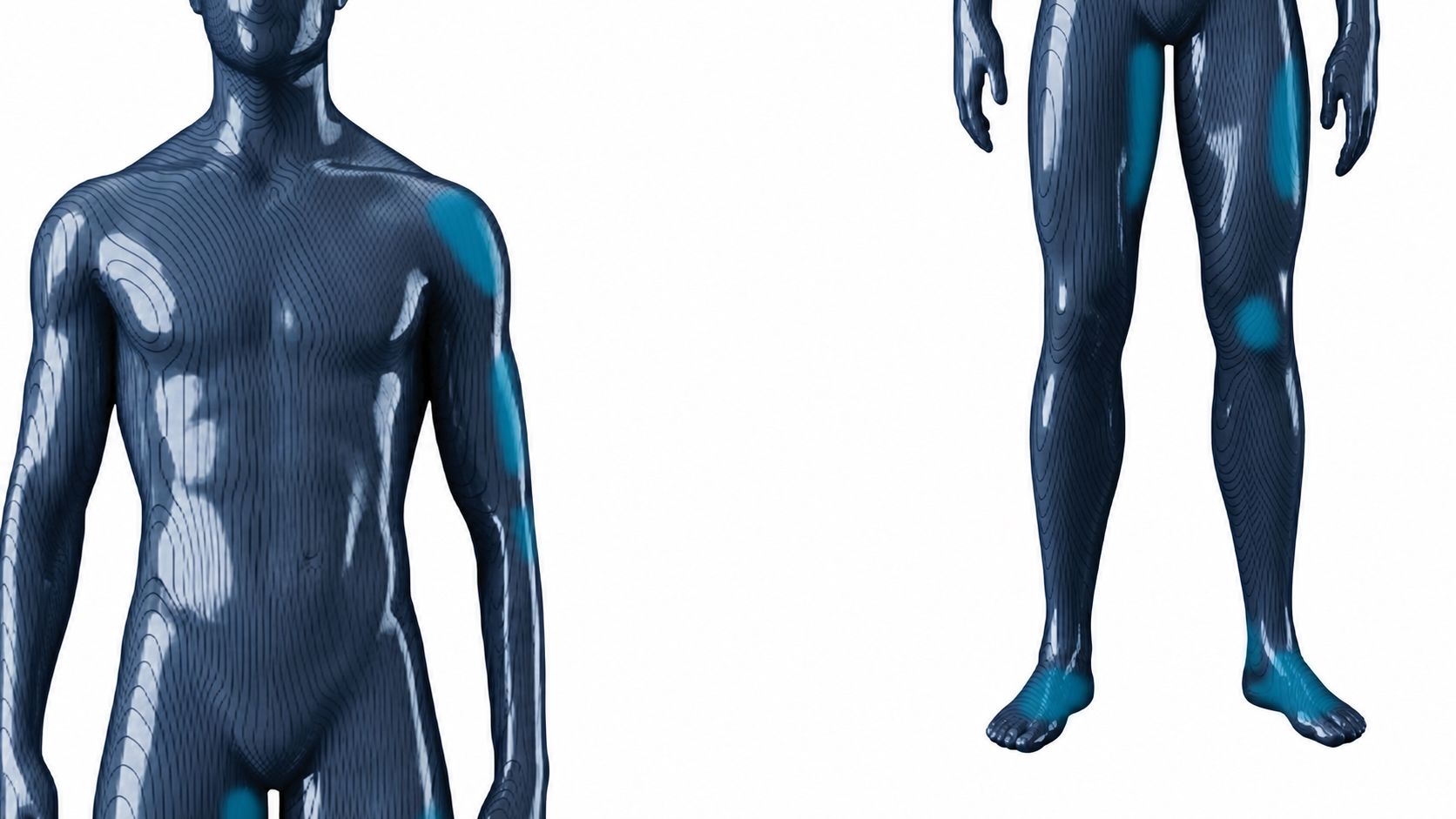

Applications

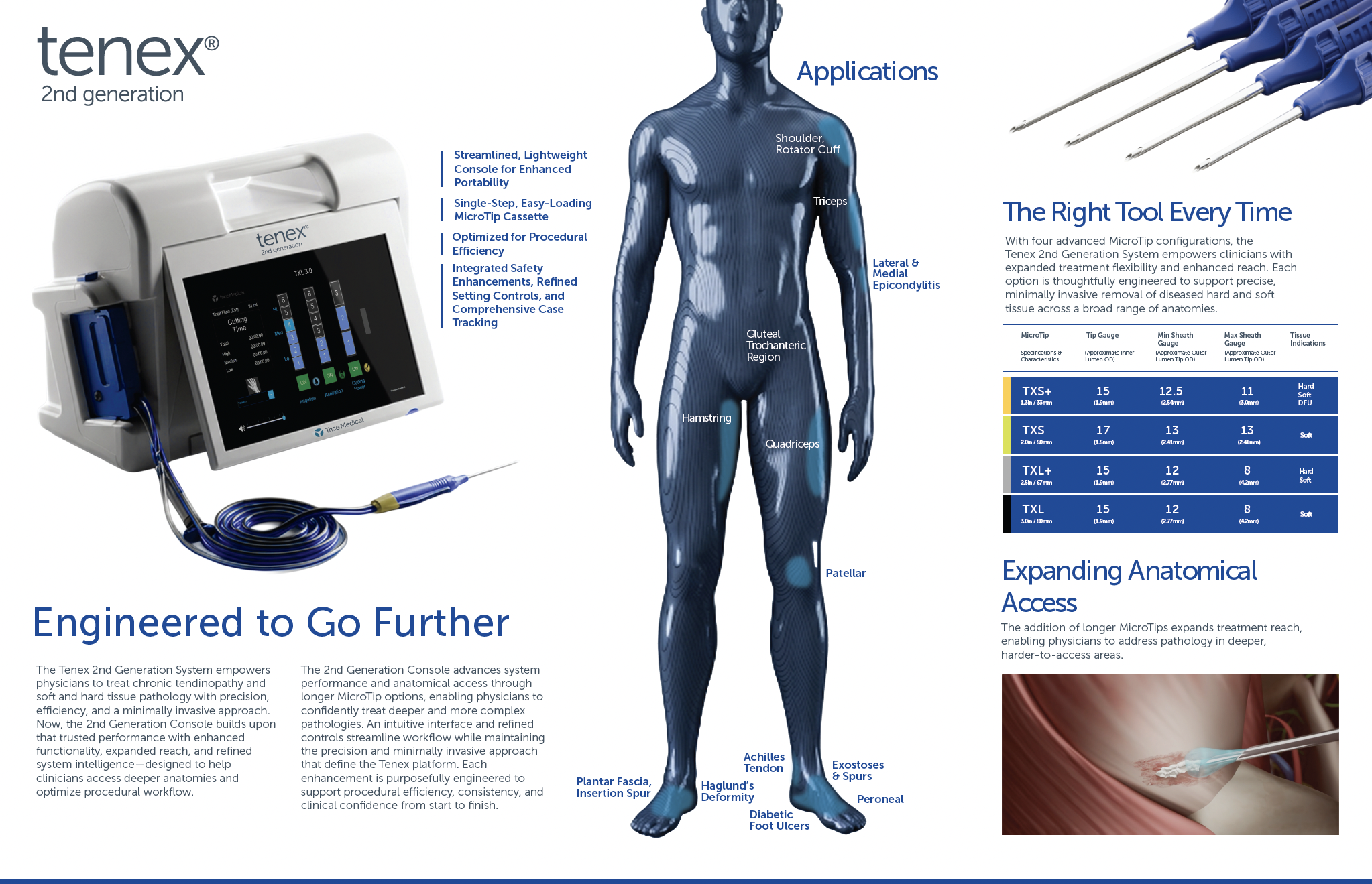

Download the Tenex 2nd Generation Brochure

Download the Tenex® 2nd Generation brochure for a detailed overview of the system, including available MicroTips, procedural workflow, and treatment applications for minimally invasive ultrasonic procedures.
